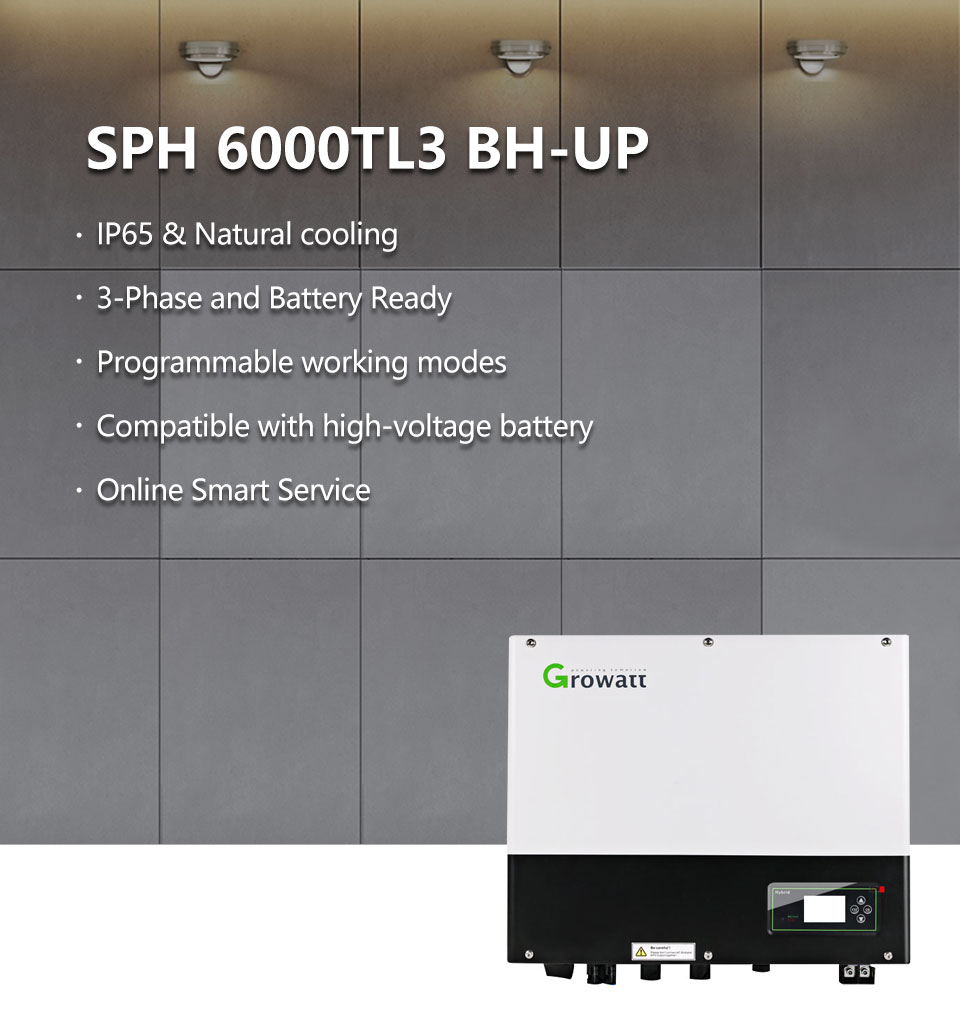

Growatt Hybrid Inverter 6KW SPH 6000TL3 BH-UP Single 3 phase inverte hybrid PV power 9000W solar inverter-INVERTER-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Specification	SPH4000TL3 BH-UP	SPH5000TL3 BH-UP	SPH6000TL3 BH-UP	SPH7000TL3 BH-UP	SPH8000TL3 BH-UP	SPH10000TL3 BH-UP
Input data (PV)
Max. recommended PV power (for module STC)	6000W	7500W	9000W	10500W	12000W	15000W
Max. DC voltage	1000V
Start voltage	120V
MPPT voltage range	120V-1000V/600V
No. of MPP trackers	2
No. of PV strings per MPP tracke	1
Max. input current per MPP tracker	13.5A
Max. short-circuit current per MPP tracker	16.9A
Output data (AC)
Rated AC output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC voltage (range*)	230V/400V (310~476V)
AC grid frequency (range)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
European efficiency	97.0%	97.2%	97.3%	97.4%	97.4%	97.5%
Protection devices
DC switch	Yes
DC reverse polarity protection	Yes
AC/DC surge protection	Type II
Battery reverse protection	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
Insulation resistance monitoring	Yes
General data
Dimensions (W / H / D)	505/453/198mm
Weight	30kg
Operating temperature range	–25 °C ... +60 °C
Nighttime power consumption	<13W
Topology	Transformerless
Cooling	Natural
Protection degree	IP65
Relative humidity	0~100%
Altitude	3000m
DC connection	H4 / MC4 (Optional )
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN	Yes/Yes /Optional/Optional/Optional/Optional
Warranty: 10 years	Yes / Optional
