Product Detail

Essential details

Place of Origin:: guangdong, China

Brand Name:: Deye

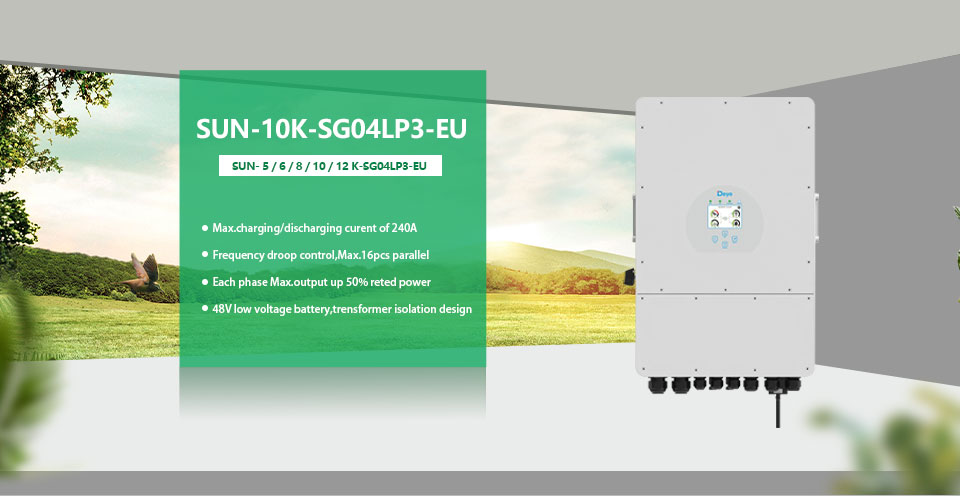

Model Number:: SUN-10K -SG04LP3-EU

Input Voltage:: 550 (160~800)

Output Voltage:: 220/380, 230/400Vac

Output Current:: 22.7A

Output Frequency:: 50/60Hz

Output Type:: Three Phase

Size:: 422W x 702H x281D

Type:: DC/AC Inverters

Inverter Efficiency:: 99.90%

Certificate:: CE/ISO9001, CE TUV

Warranty:: 5 Years

Weight:: 33.6kg

Max.DC PV Input Power:: 13000W

Battery Type:: Lead-acid or Li-lon

Supply Ability

Supply Ability: 5000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port


Model	SUN-5K-SG04LP3	SUN-6K-SG04LP3	SUN-8K-SG04LP3	SUN-10K-SG04LP3	SUN-12K-SG04LP3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W	7800W	10400W	13000W	15600W
Rated PV Input Voltage (V)	550 (160~800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load DC Voltage Range (V)	350-650
PV Input Current (A)	13A+13A			26A+13A
Max. PV ISC (A)	17+17			34+17
Number of MPPT / Strings per MPPT	2/1+1			2/2+1
AC Output Data
Rated AC Output and UPS Power (W)	5000W	6000W	8000W	10000W	12000W
Max. AC Output Power (W)	5500	6600	8800W	11000W	13200W
AC Output Rated Current (A)	7.6	9.1	12.1	12.5	18.2
Max. AC Current (A)	11.4	13.6	18.2	22.7	27.3
Max. Continuous AC Passthrough (A)	45
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
Total Harmonic Distortion(THD)	THD<3% ((Linear load<1.5%)
Power Factor	0.8 leading to 0.8 lagging
Peak Power (o grid)	2 time of rated power, 10 S
Max. Eciency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Certififications and Standards
Grid Regulation	EN50549,AS4777.2,VDE0126,IEC61727,VDEN4105,G99,NBT32004, CEI0-21,NRS097,NBR16149/16150,RD1699
Safety EMC/Standard	IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4
General Data
Operating Temperature Range (℃)	-45~60℃, >45℃ derating
Cooling	Smart cooling
Noise (dB)	≤45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W x 702H x281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years
