Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
DEL-48100LFP
- Battery Type:
Lithium Ion, LiFePO4
- Composed Type:
16S1P /15S1P
- Components:
lithium iron phosphate
- Size:
650*485*200/customized
- Product Name:
LIFEPO4 48V 100AH
- Battery type:
lifepo4 lipo pouch battery cell 3.2V 25AH Battery cell
- Cycle life:
>3000 Times-8000 times
- Warranty:
3 years
- Features:
deep cycle lifepo4 battery pack + bms
- Charge Current:
100A
- Discharge Current:
150AH
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
Standard export package:
oNE lifepo4 battery One box with foam
- Port
dongguan,shenzhen
- Lead time:
| Quantity(pieces) | 1 - 10 | 11 - 50 | >50 |
| Lead time (days) | 7 | 15 | To be negotiated |
Oem 7.68Kwh Lifepo4 Lithium Battery 51.2V 150Ah Powerwall For Home Solar Energy Storage
Battery Capacity [Ah]：150Ah
Nominal Battery Energy [kwh]:7.68Kwh
Max Discharge Current [A]:150A
Net Weight:73KG
Dimension [H*W*D, mm]:650*485*200
Voltage Window (V):37.5~55.5
Charge Voltage (V):37.5~55.5
Max. Charge Current(A):100A
Charge Mode:CC-CV

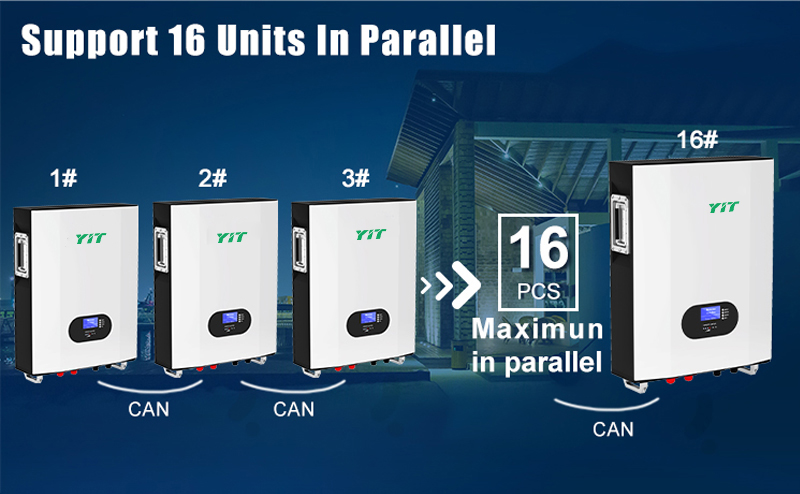

Scalability:15 PCS UP to 36kwh / 72 kwh / 108kwh / 144kwh
Communication:CAN / RS485 / RS232 /DRY CONTACT
Charge Temperature:0~5 5℃

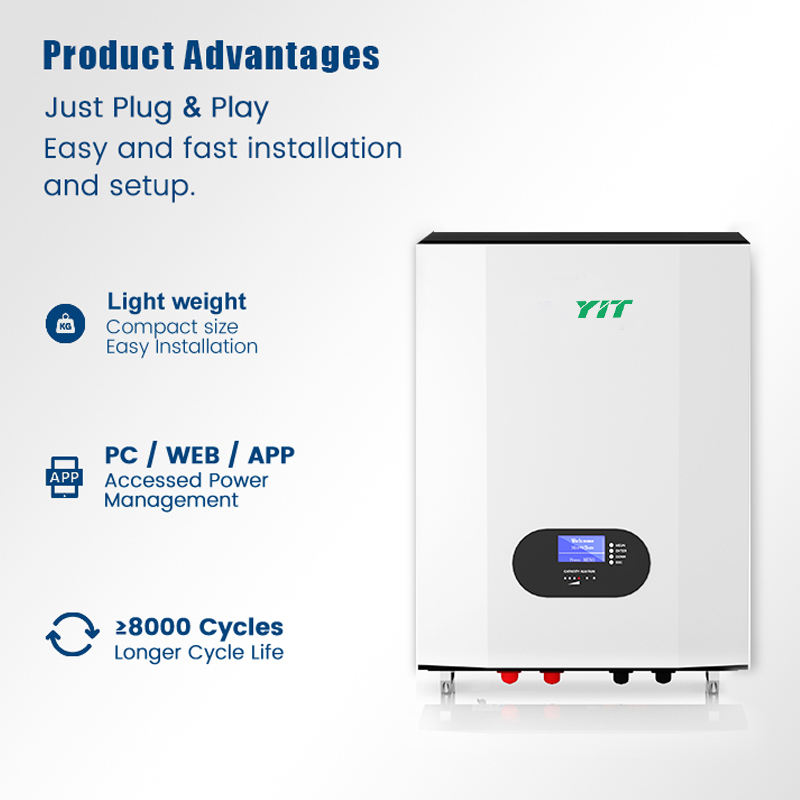

LiFePO4 lithium battery power wall product advantages
1.Easy and quick installation and setup with just plug-in
2.Light weight, compact size and convenient installation
3.Access power management support PC / APP / Web port
4.Deep cycle and long life
Datasheet | 7.68H | 10.24H | 15.36H | 20.48H | 25.6H |
|
Battery Module | （ 2.5H-A1(2.56kWh, 51.2V, 28kg) |
|
Number of Modules | 3 | 4 | 6 | 8 | 10 |
|
Energy Capacity | 7.68kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh |
|
Usable Capacity | 6.9kWh | 9.21kWh | 13.81kWh | 18.43kWh | 23.04kWh |
|
Nominal Voltage | 153.6V | 204.8V | 307.2V | 409.6V | 512V |
|
Operating Voltage Range | 141.6-170.4V | 188.8-227.2V | 283.2-340.8V | 377.6-454.4V | 472-568V |
|
Dimension(W/D/H)/mm | 650/260/725 | 650/260/905 | 650/260/1265 | 650/260/1625 | 650/260/1985 |
|
Weight | 73kg | 118kg | 172kg | 226kg | 280kg |
|
General |
|
Battery Type | Cobalt-free Lithium Iron Phosphate(LFP) |
Standard Charge/Discharge Current | |
IP Protection | |
Installation | Wall-mounted or Floor installation |
Operation Temperature | |
Warranty | |
BMS Controller | |
Weight | |
Communication Port | |
Dimension(W/D/H)/mm | |
BMS Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
