Essential details
- Place of Origin:
guangdong, China
- Brand Name:
YIT
- Model Number:
10KW 48V 200Ah
- Product name:
10KW 48V 200Ah
- Size:
480x440x255MM
- Voltage:
48V
- Cycle life:
6000 Times
- Application:
Solar System, UPS System; power station
- Warranty:
10 Years
- Type:
LIFEPO4
- Capacity:
10KWH
- OEM/ODM:
Accepatable
Supply Ability
- Supply Ability
- 10000 Pack/Packs per Month
Packaging & delivery
- Packaging Details
48v 200ah 400ah 500ah lifepo4 li ion lithium ion battery 20kw pack for solar system
- Port
shanghai
- Lead time:
| Quantity(perches) | 1 - 10 | >10 |
| Lead time (days) | 15 | To be negotiated |

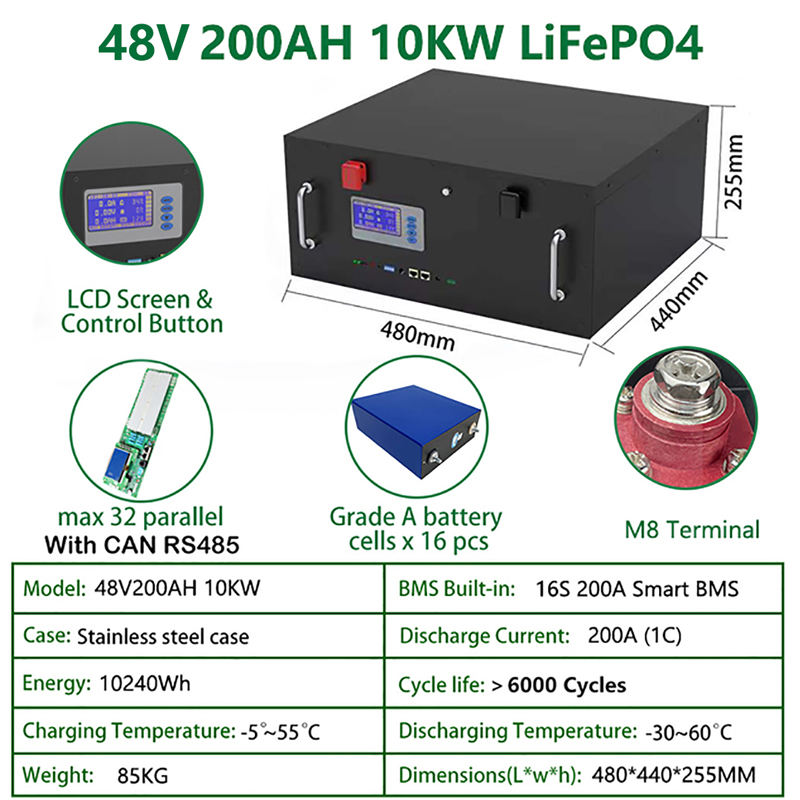

LiFePO4 10KW 48V 200Ah Lithium Ion Battery For Large Scale Energy Storage Battery Specifications |
Nominal Voltage | 48V /51.2V |
Nominal Capacity | 200Ah/10kw |
BMS | 16S 200A(Support Max 32pcs in parallel) |
Communication Interface | CAN BUS RS485 UPS |
Energy | 10240Wh |
Cycle Life | >6000 Cycles |
Self Discharge | ≤3.5% per month at 25℃ |
Max.Charging Voltage | 58.4±0.2V |
Max.Charging Current | 200A |
Discharging Current | 200A |
Discharging Cut-off Voltage | 40V |
Water Dust Resistance | IPX56 |
Battery Size | (L*W*H)480*440*255mm |
Weight | 85Kg |

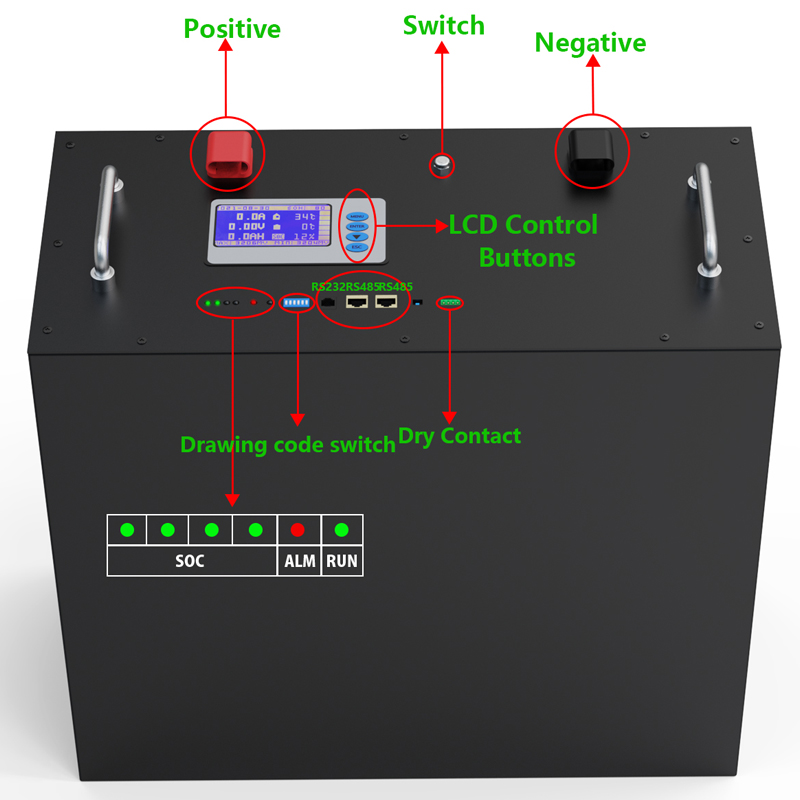

Display | LCD Screen |

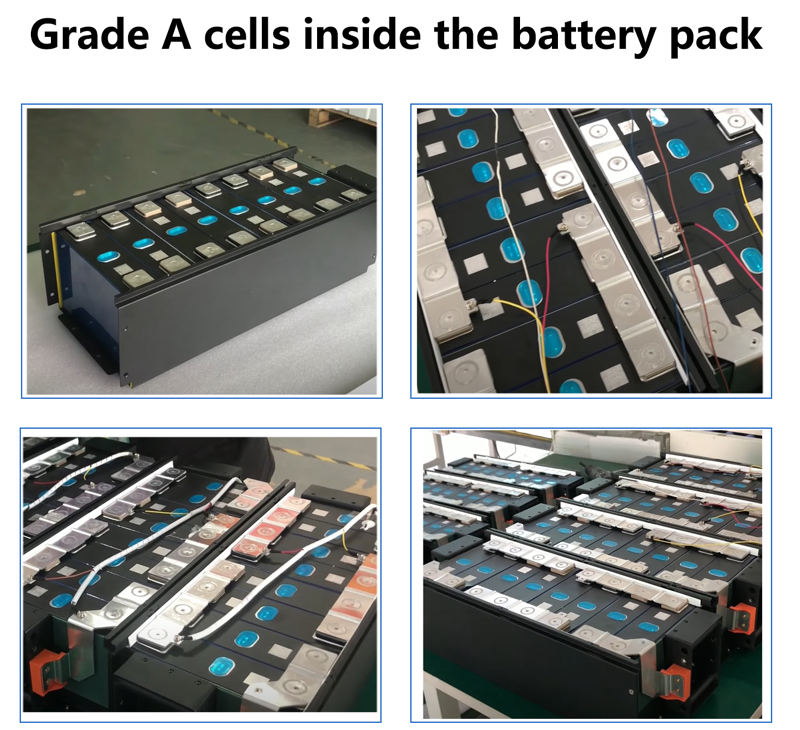

Our lithium iron phosphate battery is a new class a battery, with a cycle life of more than 6000 times, high durability, BMS
intelligent management system, multiple balance protection function and high safety performance. For our battery pack, we only use
the battery connection with an internal resistance of less than 0.05 Ω and a voltage difference of no more than 0.005v
