Product Detail

Essential details

Place of Origin:: Jiangsu, China

Brand Name:: GSO

Model Number:: 48V-200AH

Product name:: 48v 200ah 400ah 500ah lifepo4 li ion lithium ion battery 20kw

Size:: 552x400x400MM

Voltage:: 48V

Cycle life:: 5000 Times

Application:: Solar System, UPS System; power station

Terminal:: Copper

Warranty:: 10 Years

Type:: LIFEPO4

Capacity:: 10KWH

OEM/ODM:: Accepatable

Supply Ability

Supply Ability: 10000 Pack/Packs per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(perches)	1 - 10	>10
Lead time (days)	15	To be negotiated

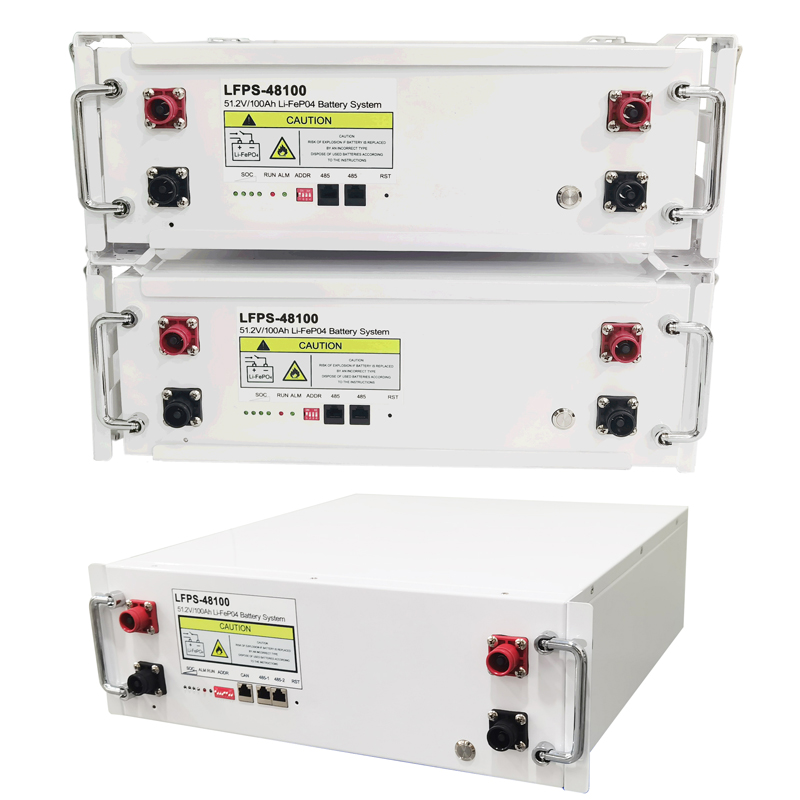

48V 100Ah 4U Cabinet Type Energy Storage Lithium Battery For Off Grid Solar Power System
The 48V 100Ah 4U cabinet energy storage battery is different from the Powerwall model. The zxdy-16s48100 ess rack type battery
provides extended battery operation time when combined with the UPS system.

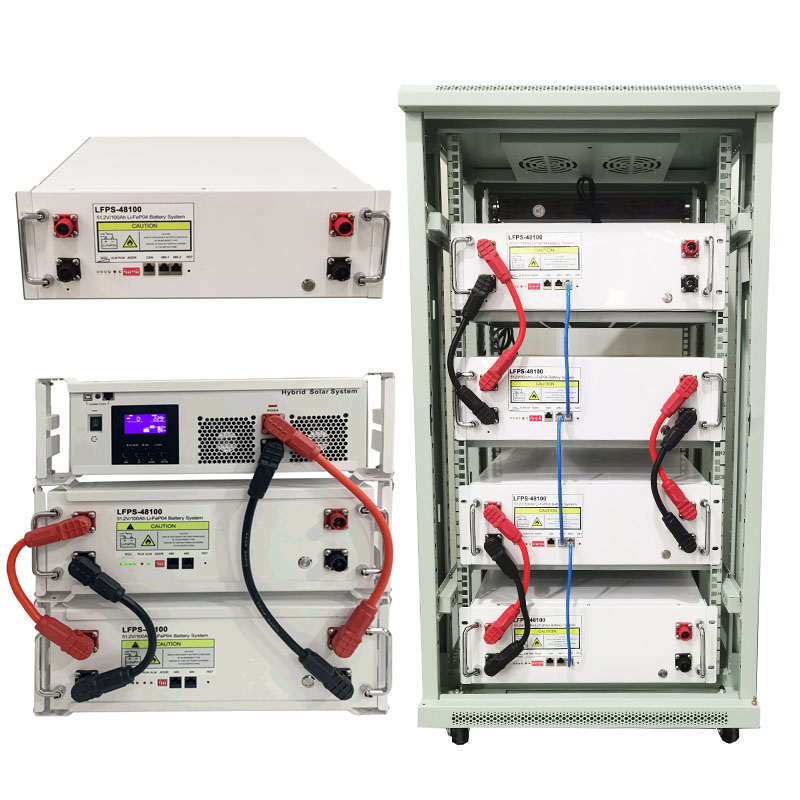

The battery module of the 3.5u 48V 100Ah rack type lithium iron phosphate lifepo4 deep cycle battery energy storage system is
designed as the ESS battery module of the energy storage system. It can be used in series or in parallel. To increase the total
system energy.
Our lifepo4 battery cabinet system are compatible with all industry-leading standard solar charging controllers, inverters and
energy management systems.

Specifications
Product Name	48V 100Ah LiFePO4 Battery Pack
Built-in BMS	16S 100A
Rate Capacity	100Ah
Energy Power	5120Wh
Nominal Voltage	51.2V
Max Charge Voltage	58.4V
Maximum Charging Current	100A (1C)
Maximum Dicharge Current	100A (1C)
Cycle Life	≥6000 Cycles
Charging Temperature	0~55°C
Discharging Temperature	-20~60°C
Dimensions(LWH)	480440160mm
Weight	49kg
Energy storage battery Features
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 6000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination

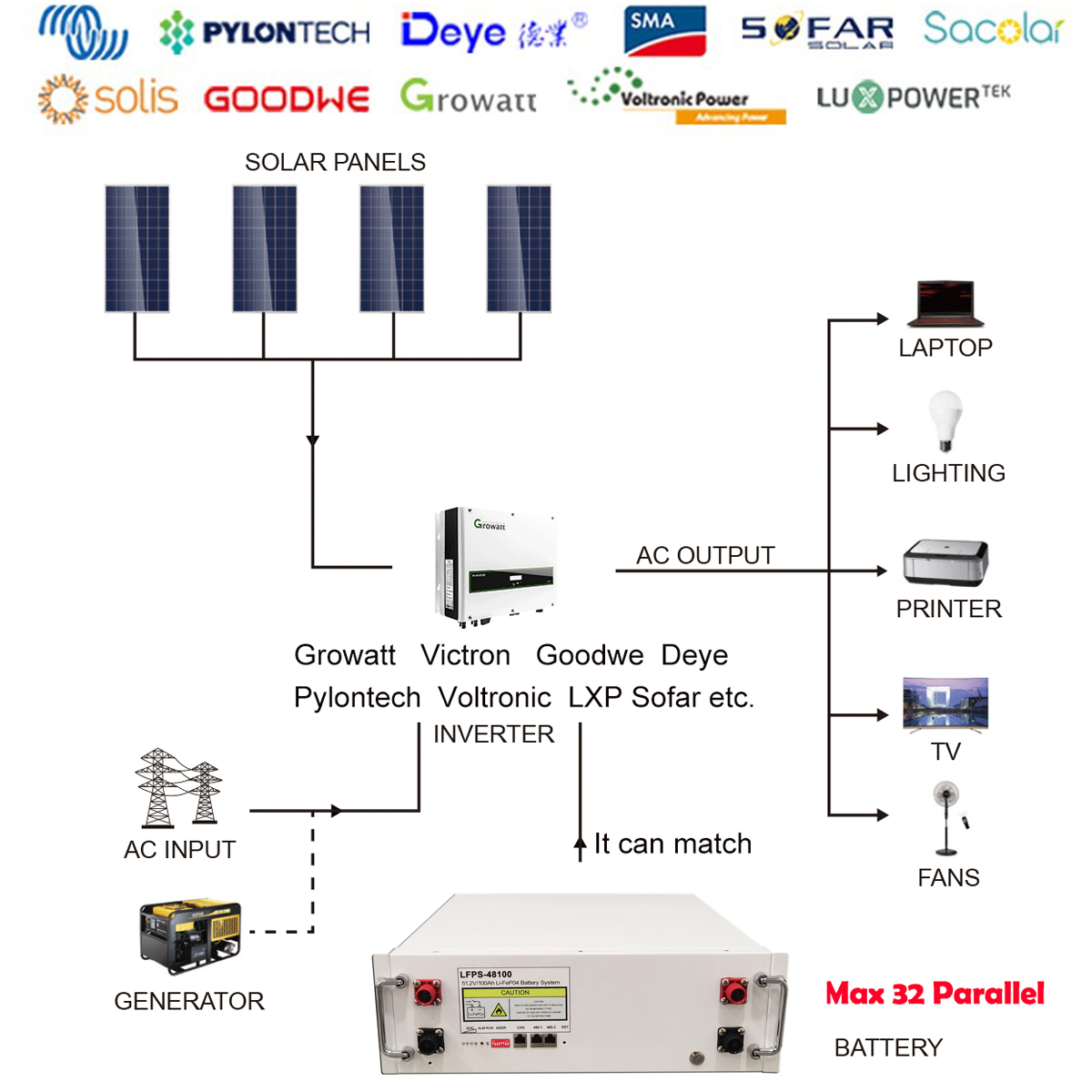

The lifepo4 battery solar system can be connected to multiple brands of inverters, Victron, Pylontech, Goodwe, Growatt, Voltronic,
Deye, LXP, Sofar, GinLong, SMA, etc.

lifepo4 battery 48v is suitable for:
Mountain communication base station
Solar energy storage
Reserve energy
Communication base station energy storage
Micro station/macro station

Home energy storage

In order to provide more efficient and cost-effective energy storage battery products to meet customers' growing power demand and
high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery

Packing & Delivery
