YIT UPS Rolling Door Motor UPS 600 Watts 1200VA Smart Line Interactive UPS-UPS-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Supply Ability

Packaging & delivery

Lead time:

Quantity(pieces)	1 - 500	>500
Lead time (days)	20	To be negotiated

Products Details

Model	650VA	800VA	1200VA	1500VA	2000VA
Capacity	650VA /360W	800VA/480W	1200VA/720W	1500VA /900W	2000VA /1200W
Input
Voltage	220VAC
AC Mains Input Voltage Range	145-280 VAC (same as AC mains)
Frequency	50 Hz
Output
Voltage Range(Battery Mode)	±10%
Frequency Range(Battery Mode)	50 Hz ±1 Hz
Transfer Time	＜6ms
Waveform(Battery)	Modified sine wave
Battery
Battery Type & Quantity	12V7.2Ah x 1	12V 9Ah x 1	12V 7.2Ah x 2	12V 9Ah x 2	12V 9Ah x 2
Battery Charging Tiime	6 hours charge to 90%

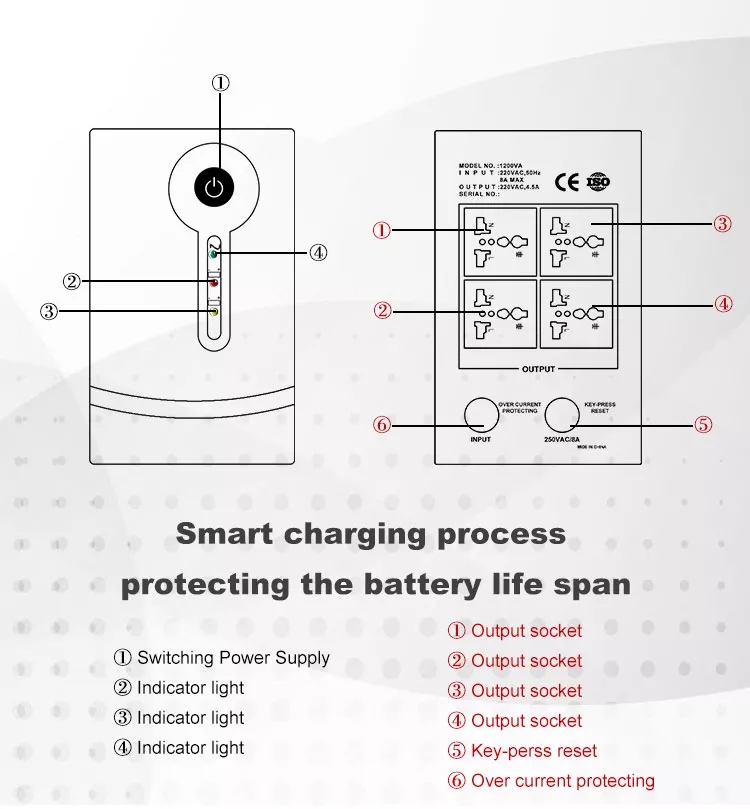

LED Indicators
AC Mode	Green light
Battery Mode	Red light flash

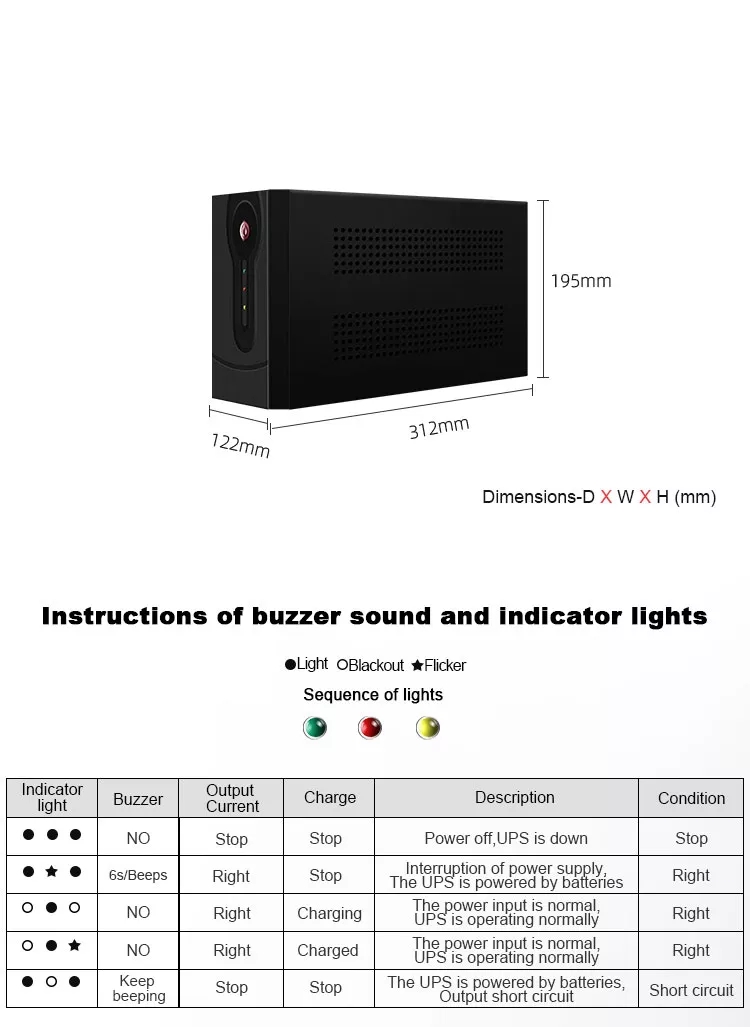

Audible Alarm
Battery Mode	Alarm beeps every six seconds
Low Battery	Alarm beeps every second
Overload	Alarm beeps twice every second
Fault	Alarm beeps continuously
Protection Function
Comprehensive Protection	Overload, deep discharge and over-charge protection
Environment
Temperature And Humidity	Relative humidity 0-90% and temperature 0- 40°C (No-condensing)
Noise	less than 40dB at one meter distance
Physical Function
Dimensions (mm)	33587143	33587143	312122195	360122195	360122195
Net Weight (kgs)	4.6	5	8.8	11.7	13.1
