Essential details
- Warranty:
1 YEAR
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
YIT 10KVAL
- Phase:
Single Phase
- Protection:
Overcurrent
- Weight:
18KG
- Type:
On-line
- Application:
Medical
- Product name:
ups systems
- keywords:
10kva ups
- Inverter to Bypass:
4 ms (Typical)
- waveform:
pure sine wave
- transfer time:
Zero
- max charge current:
1A
- nverter to Bypass:
4 ms (Typical)
- Certificate:
CE
- Color:
Black
- warrenty:
12 months
Supply Ability
- Supply Ability
- 1000 Set/Sets per Month
Packaging & delivery
- Packaging Details
1.Inner: color box;
2.Outer: Standard export cartons or wooden case;
3.Customized package.
- Port
shenzhen
- Lead time:
| Quantity(pieces) | 1 - 10 | >10 |
| Lead time (days) | 7 | To be negotiated |
1.Unattended support for automatic shutdown.
2.High performance, mature digital control.
3.Environmental protection and energy conservation save user costs, comply with the requirements of EU environmental protection.directives, output power up to 0.9, improve operating efficiency and reduce more emissions.
4. Intelligent voltage stabilization. For areas with low and unstable voltage, it can stabilize the voltage output to ensure the normal and safe operation of computers, printers and other office equipment.
5.The protective umbrella of electric equipment in bad weather and thunderstorm can easily deal with sudden power failure in bad electric energy environment and is not afraid of damaging the equipment. It has enough time to save documents.
6.The computer does not restart, which can better solve the computer restart or shutdown caused by the transient voltage change,such as the restart caused by the startup of large electrical equipment.
MODEL | YTC6K/YTC6K | YTC10K/YTC10K |
PHASE | 1 phase in / 1 phase out |
CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
INPUT |
Nominal Voltage | 208/220/230/240VAC |
Voltage | Low Line Loss | 110 VAC ± 3% at 50% Load |
Range | 176 VAC ± 3% at 100% Load |
| Low Line | 120 VAC ± 3% at 50% Load |
| Comeback | 186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line | 290 VAC ± 3% |
| Comeback |
Frequency | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
Range |
Power Factor | ≥ 0.99 @ 100% load |
OUTPUT |
Nominal Voltage | 208/220/230/240VAC |
AC Voltage | ± 1% |
Regulation |
Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
(Synchronized Range) |
Frequency Range | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
(Batt. Mode) |
Current Crest Ratio | 3:1 (max.) |
Harmonic Distortion | ≤ 3 % THD (Linear Load) |
≤ 6 % THD (Non-linear Load) |
Transfer Time | Bypass | Zero |
(Line mode) | to Inverter |
| Inverter | Zero |
| to Bypass |
Waveform | Pure Sinewave |
(Batt. Mode) |
EFFICIENCY |
Line Mode | 0.89 | 0.9 |
Battery Mode | 0.88 | 0.89 |
BATTERY |
Standard | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
Model | Numbers | 16 | 16 |
| Typical | 9 hours recover to 90% capacity |
| Recharge Time |
| Charging Current | Default:1.0 A ± 10%, | Default:1.0 A ± 10%, |
| Max.:2.0A ± 10% | Max.:2.0A ± 10% |
| Float | 218.4 VDC ± 1% |
| Charging Voltage |
Long-run | Battery Type | Depending on applications |
Model | Numbers | 16-20pcs(adjustable) |
| Charging Current | Default:4.0 A ± 10%, | Default:4.0 A ± 10%, |
| Max.:6.0A ± 10% | Max.:6.0A ± 10% |
| Float | 273 VDC ± 1% (based on 20 pcs batteries) |
| Charging Voltage |
INDICATORS |

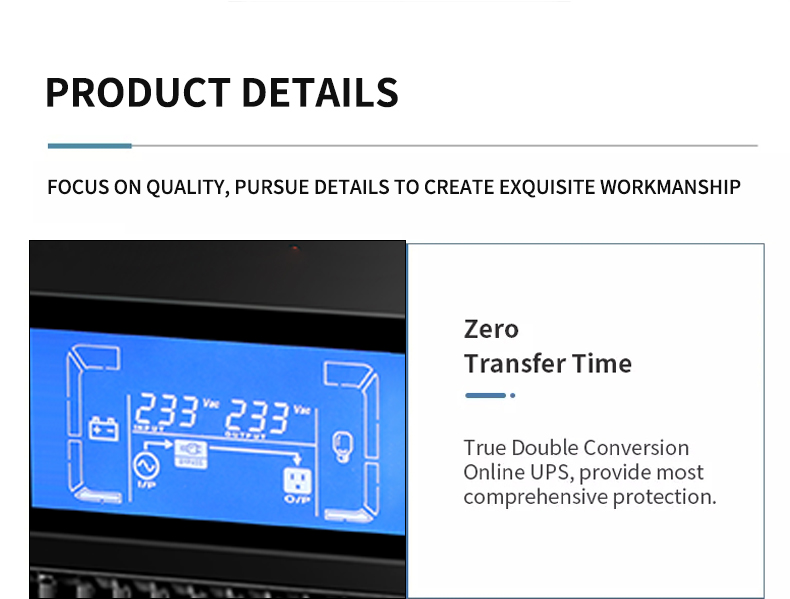

LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, |
Discharge timer, and Fault conditions |
ALARM |
Battery Mode | Sounding every 4 seconds |
Overload | Sounding twice every second |
Fault | Continuously sounding |
PHYSICAL |
Standard | Dimension | 369 x 190 x 688 | 442 x 190 x 688 |
Model | Net Weight (kgs) | 61 | 75 |
Long-run | Dimension | 369 x 190 x 318 | 442 x 190 x 318 |
Model | Net Weight (kgs) | 12 | 18 |
ENVIRONMENT |
Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter |
MANAGEMENT |

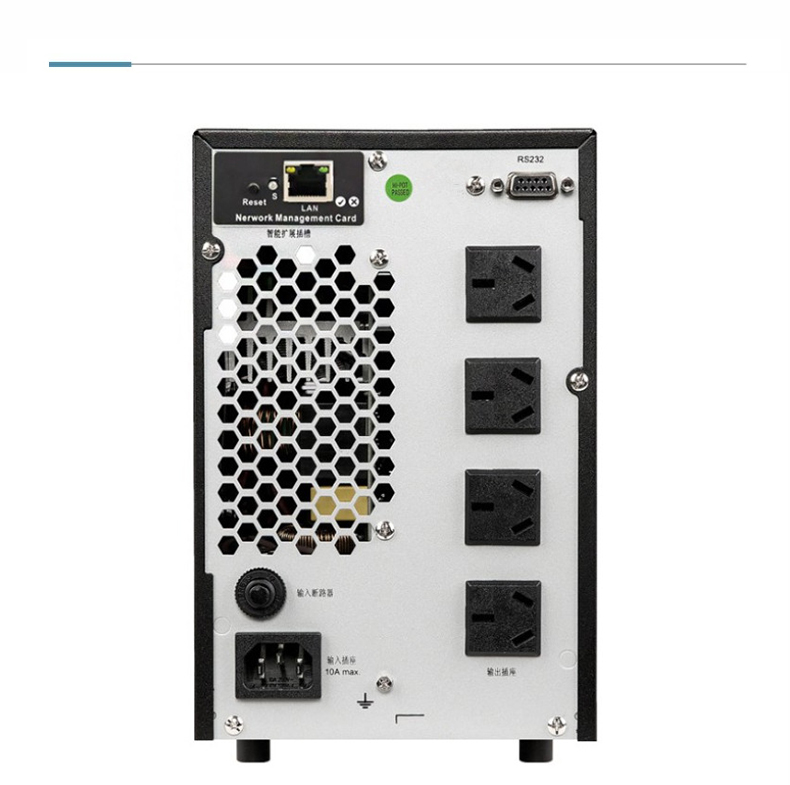

Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, |
Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
Our Services
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare
parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional
machine.
